Platinum Tools TDR and Cable Length Testers

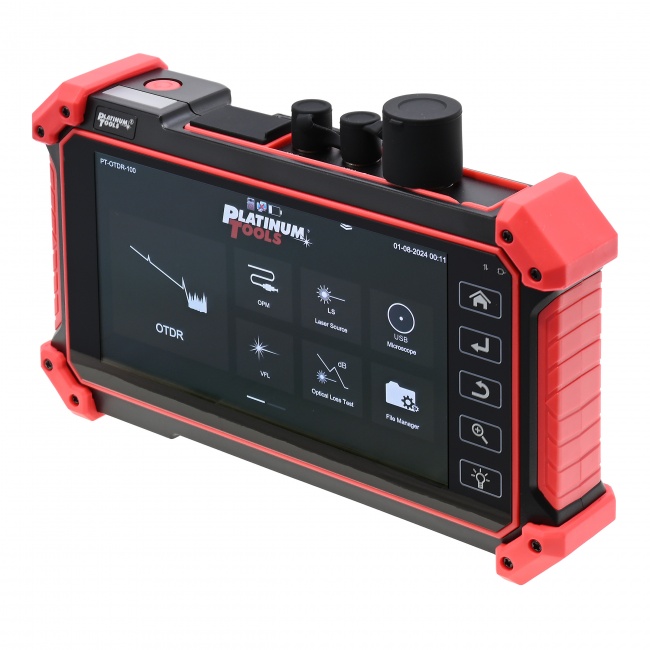

PT-OTDR-100 Mini OTDR and Copper TDR
PT-OTDR-100
$931.78
In Stock
A single handheld reflectometer that covers both halves of a low-voltage job. On fiber it runs a full OTDR trace from 3 meters out to 105 km at 1310 and 1550 nm and maps every event on the span by distance. On copper it works as a TDR, returning cable length and distance-to-fault on twisted pair and coax. Traces export as .SOR files or PDF reports, so one instrument documents both the fiber backbone and the copper horizontal for as-built and acceptance paperwork.
Qty
- Secure checkout via Stripe
- Free shipping over $75
- Ships next business day
- 30-day returns
Questions before you buy? Call (615) 905-6018 — Mon–Fri, 9–5 Central.
Key Features
- Optical TDR (fiber) and copper TDR in one handheld instrument
- Fiber trace range 3 m to 105 km at 1310 nm and 1550 nm, 26/28 dB dynamic range
- Length and distance-to-fault measurement on copper twisted pair and coax
- Automatic event mapping locates splices, connectors, and breaks by distance
- Exports .SOR trace files and PDF reports for as-built documentation
- Integrated optical power meter, visual fault locator, and laser source
- 5.5 in OLED touchscreen, 1280 x 720 resolution
Specifications
Instrument Type OTDR (fiber) plus TDR (copper)
Wavelengths 1310 nm / 1550 nm
Dynamic Range 26 dB / 28 dB
Fiber Test Range 3 m to 105 km
Copper Testing Length and distance-to-fault
Also Includes Optical power meter, VFL, laser source
Display 5.5 in OLED touchscreen, 1280 x 720
Reporting .SOR trace export and PDF
Weight 5 lb
